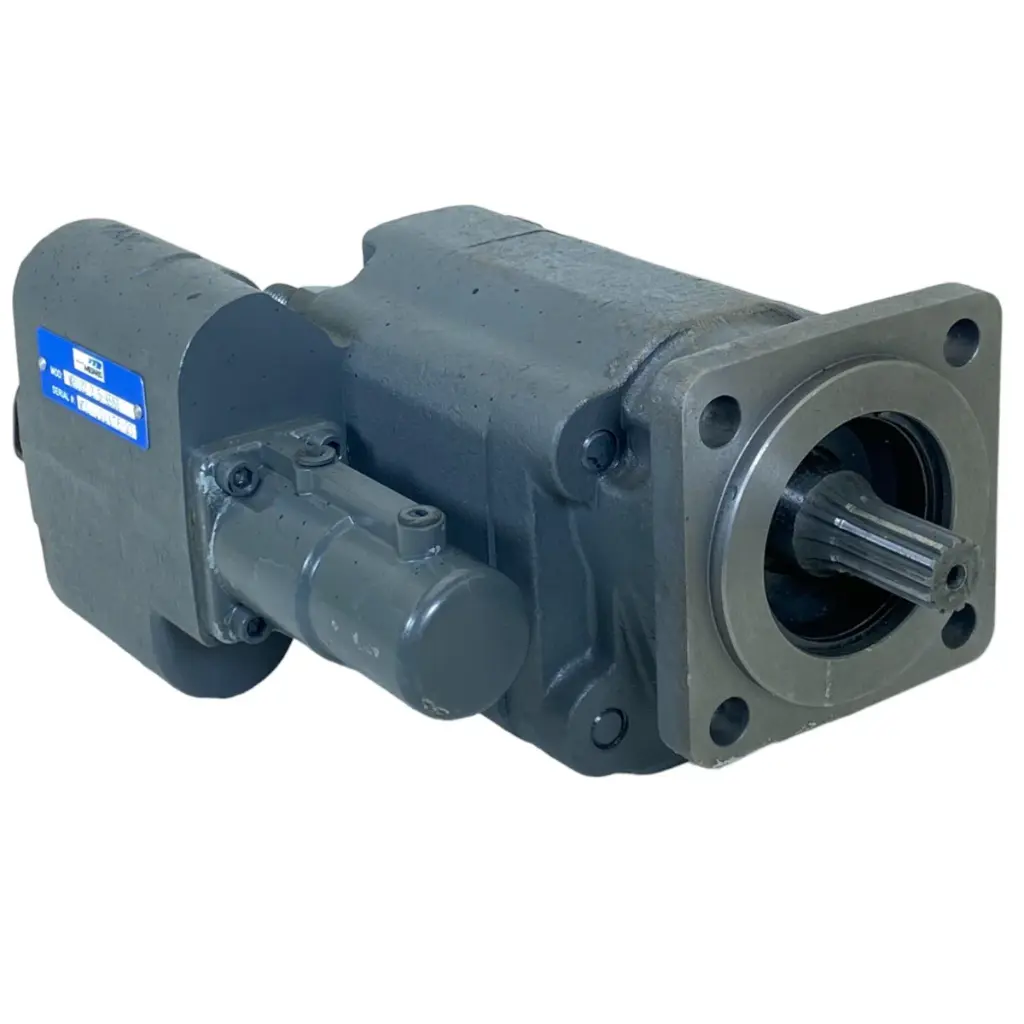

HC102-LAS-25

The HM C102 is a hydraulic dump pump designed for demanding applications such as dump trucks and dump trailers. This model features an air-shift mechanism for remote operation, facilitating efficient control. It is configured for left-hand rotation and comes with a 7/8-13 tooth shaft and a 2-1/2" gear. The pump is capable of handling pressures up to 2,500 PSI and operating at speeds up to 2,400 RPM, delivering flow rates of 39 to 48 GPM at 1,800 RPM. It supports both 2- and 3-line installations and includes a relief valve to protect both the pump and the cylinder. The HM C102 is a direct replacement for Parker/Commercial C102 series pumps.

Interchangeable Replacement Parts:

• HC102-LMS-25: Left-hand rotation, manual shift, 7/8-13 tooth shaft, 2-1/2" gear.
• HC102-RAS-25: Right-hand rotation, air shift, 7/8-13 tooth shaft, 2-1/2" gear.
• HC102-RMS-25: Right-hand rotation, manual shift, 7/8-13 tooth shaft, 2-1/2" gear.

These models offer variations in rotation direction and shifting mechanisms to suit different system requirements.
